Xhorse XDDDM0GL Digital Multimeter with Overload Protection
TL40629
Xhorse XDDDM0GL Digital Multimeter with Overload Protection
- SKU: TL40629
-
Category:
Accessories Tools
- Manufacturer: Xhorse
Attributes
| weight | 0.505 KG |
|---|

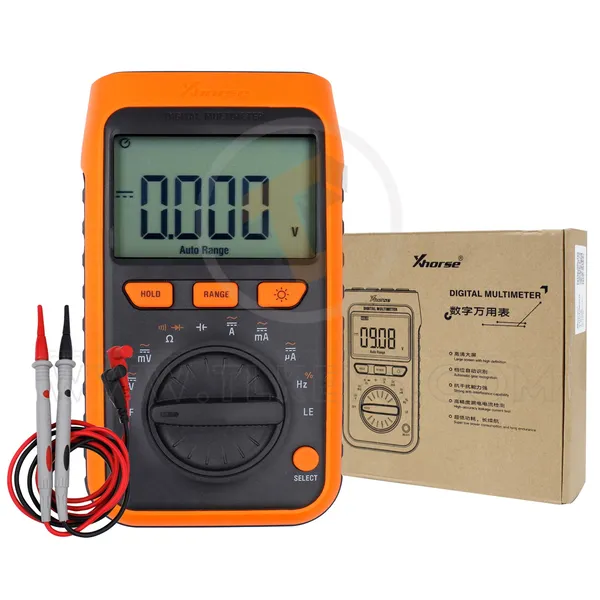

Xhorse Digital Multimeter XDDDM0GL: Precision and Reliability in One Tool
The Xhorse Digital Multimeter XDDDM0GL is a top choice for professionals seeking a versatile and reliable measurement tool. Whether you are a locksmith or an electronics enthusiast, this digital multimeter offers exceptional performance with advanced features designed to meet various needs. Discover how the XDDDM0GL stands out from the competition and why it's the perfect addition to your toolkit.
Unmatched Features of the Xhorse Digital Multimeter XDDDM0GL
1. Multimeter with Overload Protection
Equipped with overload protection, the XDDDM0GL ensures safety and durability by handling impacts up to 600V. This feature prevents damage from accidental overvoltages, making it a durable multimeter ideal for both professionals and DIY enthusiasts.
2. Comprehensive Measurement Capabilities
Experience precision with AC/DC voltage measurement, AC/DC current measurement, resistance measurement, capacitance measurement, and frequency measurement. The XDDDM0GL is a versatile multimeter that covers a wide range of testing needs.
3. Advanced Leakage Detection
Specially designed for remote leakage detection, this multimeter with leakage detection offers accurate readings down to 0.1μA. This feature is crucial for electronics repair and maintenance, especially for detecting static leaks in electronic products.
4. High-Definition Large Screen
The XDDDM0GL features a large screen with high definition, ensuring clear and easy-to-read measurements. This multimeter with a high-definition display enhances usability in various lighting conditions, making it easier to work in low-light environments.
5. Low Power Consumption and Long Battery Life
With super low power consumption of less than 3mA, the XDDDM0GL boasts an extended battery life. This easy-to-use multimeter incorporates automatic power-saving functions to ensure long-lasting performance.
6. Auto-Ranging for Simplified Measurements
Enjoy simplified and error-free measurements with the auto-ranging mode. This multimeter with auto-ranging automatically adjusts its settings to the measurement being taken, saving time and reducing manual errors.
7. Mistest Protection
The XDDDM0GL is equipped with mistest protection, including overvoltage and overcurrent alarms. This feature ensures that the multimeter remains safe and reliable even in challenging conditions.
Digital Multimeter Measurement Specifications Table
| Function | Measurement Range | Maximum Resolution | Accuracy |
|---|---|---|---|
| Leakage detection | 600uA/6000uA | 0.1uA | 1uA |
| DC voltage | 600mV | 0.1mV | ±(0.5%+3) |
| 6V/60V/600V | 0.001V | ±(0.5%+3) | |
| AC voltage | 600mV | 0.1mV | ±(0.8%+3) |
| 6V/60V/600V | 0.001V | ±(0.8%+3) | |
| 600uA/6000uA | 0.1uA | ±(0.8%+3) | |
| DC current | 60mA/600mA | 0.01mA | ±(0.8%+3) |
| 10A | 0.001A | ±(0.6%+3) | |
| 600uA/6000uA | 0.1uA | ±(1%+3) | |
| AC current | 60mA/600mA | 0.01mA | ±(1%+3) |
| 10A | 0.001A | ±(1%+3) | |
| Resistance | 6000/6ΚΩ/60ΚΩ/600ΚΩ/6ΜΩ/60ΜΩ | 0.1Ω | ±(0.8%+3) |
| On/off detection | Sound production below 500 | 0.1Ω | ±(1%+3) |
| Display OL above 6100 | |||
| Capacitance | 6nF/60nF/600nF/6uF | 0.001nF | ±(5%+5) |
| 60uF/600uF | 0.01 uF | ±(10%+5) | |
| Frequency | 9.999Hz/99.9Hz/999.9Hz/9.999kHz /99.99kHz/999.9kHz/9.999M | 0.001Hz | ±(0.5%+3) |
| Duty cycle | 1%-99% | 0.1% | ±(1%) |
| Diode | 0V-3.3V | 0.001V | Display OL above 3.3V |
Why Choose the Xhorse Digital Multimeter XDDDM0GL?
The Xhorse multimeter XDDDM0GL is a professional-grade tool designed to offer unparalleled accuracy and functionality. Its comprehensive features make it suitable for a wide range of applications, from locksmithing to advanced electronics testing. With its accurate measurements, user-friendly interface, and durable design, this professional multimeter is the perfect choice for those who demand the best.
Order Now and Experience the Difference
Ready to enhance your measurement capabilities? Buy the Xhorse Digital Multimeter XDDDM0GL today and experience precision like never before. Click here to order now and take advantage of this exceptional tool!
What functions does the Xhorse Digital Multimeter XDDDM0GL support? ▼
The Xhorse Digital Multimeter XDDDM0GL supports a variety of functions, including AC/DC voltage measurement, AC/DC current measurement, resistance measurement, capacitance measurement, frequency measurement, duty cycle measurement, diode testing, and continuity testing.
What is the measurement range for leakage detection? ▼
The measurement range for leakage detection is 600μA/6000μA, with a maximum resolution of 0.1μA and accuracy of 1μA.
Can this multimeter measure both AC and DC voltage? ▼
Yes, the XDDDM0GL can measure both AC and DC voltage. It has measurement ranges of 600mV, 6V, 60V, and 600V with resolutions of 0.1mV and 0.001V, and an accuracy of ±(0.5%+3) for DC voltage and ±(0.8%+3) for AC voltage.
What is the maximum resolution for DC current measurements? ▼
The maximum resolution for DC current measurements is 0.01mA for 60mA/600mA ranges and 0.001A for the 10A range. The accuracy is ±(0.8%+3) for 60mA/600mA and ±(0.6%+3) for the 10A range.
How does the XDDDM0GL handle AC current measurements? ▼
For AC current measurements, the XDDDM0GL covers ranges of 600μA/6000μA, 60mA/600mA, and 10A. It offers resolutions of 0.1μA, 0.01mA, and 0.001A respectively, with accuracies of ±(0.8%+3) for 600μA/6000μA and 60mA/600mA ranges, and ±(1%+3) for the 10A range.
What are the measurement ranges and accuracy for resistance? ▼
The multimeter measures resistance from 600Ω to 60MΩ. The maximum resolution is 0.1Ω, and the accuracy is ±(0.8%+3) for resistance measurements. For on/off detection, the device produces sound below 500Ω and displays OL above 6100Ω.
Can the XDDDM0GL measure capacitance? ▼
Yes, the XDDDM0GL can measure capacitance with ranges from 6nF to 600uF. It has resolutions of 0.001nF for lower ranges and 0.01uF for higher ranges, with accuracies of ±(5%+5) for 6nF to 60uF and ±(10%+5) for 60uF to 600uF.
What is the frequency measurement range? ▼
The frequency measurement range of the XDDDM0GL is from 9.999Hz to 9.999MHz, with a resolution of 0.001Hz and an accuracy of ±(0.5%+3).
How accurate is the diode testing function? ▼
The diode testing function measures from 0V to 3.3V with a resolution of 0.001V. The display shows OL (overload) for readings above 3.3V.
What protection features are included? ▼
The XDDDM0GL includes overload protection, able to withstand impacts up to 600V. It also has mistest protection with overvoltage and overcurrent alarm prompts.
How does the auto-ranging feature work? ▼
The auto-ranging feature simplifies measurements by automatically adjusting the multimeter’s settings based on the measurement being taken. This reduces manual errors and makes the device easier to use.
What is the battery life and power consumption? ▼
The XDDDM0GL is designed with low power consumption of less than 3mA, contributing to long battery life. It includes automatic power-saving features to extend battery performance.
Is the display easy to read in low-light conditions? ▼
Yes, the XDDDM0GL features a high-definition large screen with a backlight, ensuring clear and readable measurements even in low-light environments.
What is the build quality of the XDDDM0GL? ▼
The XDDDM0GL is built with durable materials and includes a design that is easy to grip, with a knob that conforms to user habits. It also features a rear support that can be adjusted for various usage conditions.
