Xhorse XDMLB0 VVDI MLB Tool Add Key VAG MLB

Xhorse XDMLB0 VVDI MLB Tool – Add Key for VAG MLB Vehicles

Key Features:

• Effortless Key Addition for MLB Models
  Supports key programming for Audi, Porsche, Volkswagen, Lamborghini, Bentley, and other VAG MLB vehicles.

• No Chip Removal Required
  Easily read and write key data by disassembling the key shell only. Built-in 22k reader allows for wireless key operations without removing the chip.

• Wireless Key Generation
  Seamlessly generate original dealership keys and Xhorse MLB keys wirelessly.

• Integrated Immobilizer Detection
  Equipped with a built-in module for wireless key recognition and Immo status detection.

• Supports OEM and Xhorse Keys
  Compatible with brand-new original keys (initialized or uninitialized) and Xhorse VVDI MLB keys. Can check and verify the status of OEM keys. VVDI keys support unlimited reuse.

• Rewrite Uninitialized Key IDs
  Modify the ID of uninitialized original keys with ease.

• No Vehicle Access Required
  Collect key data, upload for online calculation, and retrieve immobilizer data—no need to connect to the vehicle.

Requirements for Key Programming:

• Original Key Compatibility:

  • Unlocked, Uninitialized (with ID): Can be used directly to generate and program a new key.

  • Unlocked, Uninitialized (no ID): ID can be rewritten once.

  • Unlocked, Initialized: Can be reverted to uninitialized state with anti-theft data calculation.

  • Locked, Initialized: Cannot be unlocked.

• VVDI Dedicated MLB Key: Coming soon for enhanced compatibility.

Software & Binding:

• MLB-Tool Binding:
  Required to bind with the Xhorse App. Navigate to Special Function → Bind Device, then scan the QR code to bind.

• Software Use:

  • With VVDI2: Requires MLB PC software.

  • With VVDI Key Tool Plus (KTP): Connect the MLB Tool via the OTG adapter to perform key data collection, dealer key generation, and learning—all within the KTP device.

Wiring Instructions:

• Wiring Diagram (Type 1–6):
  No need to remove the chip, but two 100nF capacitors must be removed. Solder cables according to the color-coded diagram provided.

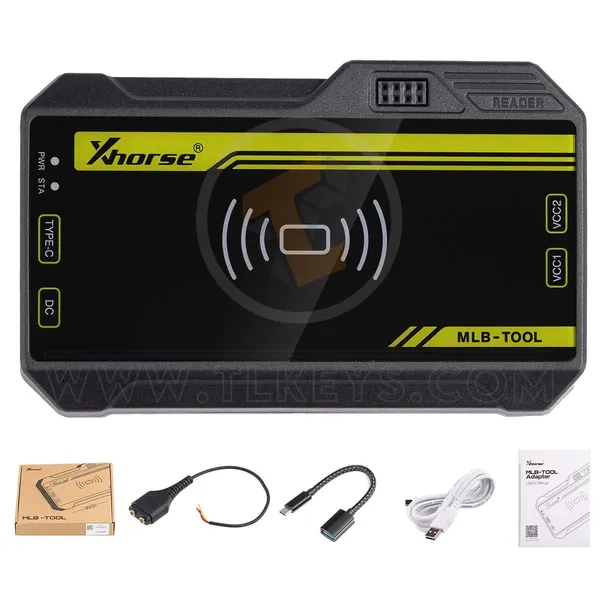

Package Includes:

• 1× MLB Tool

• 1× MLB Cable

• 1× USB Type-C Cable

• 1× OTG Adapter

• 1× User Manual
