Xhorse XDMLB0 VVDI + XDMQBAGL MLB +5 XZKA82EN + 5 XSMA41EN + 5 Kia Remote Shell

The Xhorse VVDI MLB Tool is a professional solution designed for adding keys to MLB platform vehicles such as Audi, VW, Porsche, Lamborghini, Bentley, and more. It enables key data reading, wireless key generation, and IMMO data calculation without needing to remove the chip.

Key Features:

• Add keys to MLB vehicle models

• No chip removal – only open the key shell

• Wireless key generation (OEM & Xhorse keys)

• Read IMMO data without vehicle access

• Compatible with both original & Xhorse MLB keys

• Rewrite uninitialized key IDs

• Use with VVDI2 (requires VV-05 MQB & VV-02 VAG IMMO5 licenses) or Key Tool Plus

• No points required with Xhorse MLB keys

• Software version: 1.0.3.0 (Windows 10/11)

❗ Note: This tool does not clone keys. It reads key data, generates a dealer key, and learns the key via OBD using VVDI2 or Key Tool Plus.

When Are Points Deducted?

• When adding keys to calculate IMMO data

• During key recovery if the second-hand key lacks IMMO data

XDMQBAGL MQB Adapter (For MQB48 Keys)

• No need to remove the cluster — just solder 2 wires

• Enables data read and key addition for MQB48 models

• Compatible with Key Tool Plus, Key Tool Max, VVDI2

Usage Instructions

• VVDI2: Use MLB tool + MQB adapter to read IMMO → load → generate key

• Key Tool Plus: Connect via OTG → read → generate → learn key
  (Requires 4th Gen license; MQB48 NEC35XX function not needed)

💡 Important: Use a PC with strong power supply. Avoid tablets with a single USB-C port to reduce risk and collection time.

MLB Main Unit Upgrade Chip

• Replaces the chip in the MLB main unit

• Required to connect with Key Info Collector

Xhorse Remote Options (Included):

XZKA82EN – PCB for Hyundai/Kia

• Buttons: 3

• Battery: CR2032

• Supports Smart / Keyless Go

• XZ Series

• For Hyundai/Kia models only

XSMA41EN – Smart Remote PCB

• Buttons: 3

• MLB Smart Series

• Reusable MLB remote (200 points per programming)

• Supports:

  • Audi

  • Volkswagen

  • Bentley

  • Porsche

  • Lamborghini

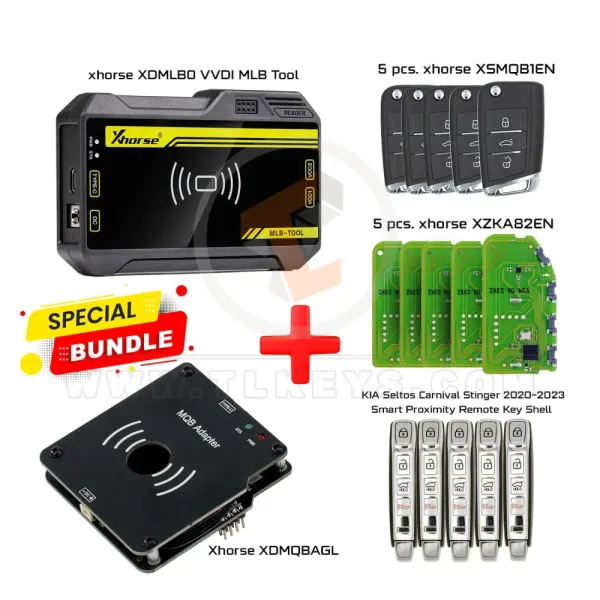

Package Includes:

• 1x VVDI MLB Tool

• 1x XDMQBAGL MQB Adapter

• 5x XZKA82EN Hyundai/Kia PCB

• 5x XSMA41EN MLB Remote PCB

• 5x Kia Remote Shells
